[Early Bird Offer] Lancelot MU1730-B UV 3D Badges Printer ( Limited Time )
暂无视频内容
暂无功能图片
Add to wishlist

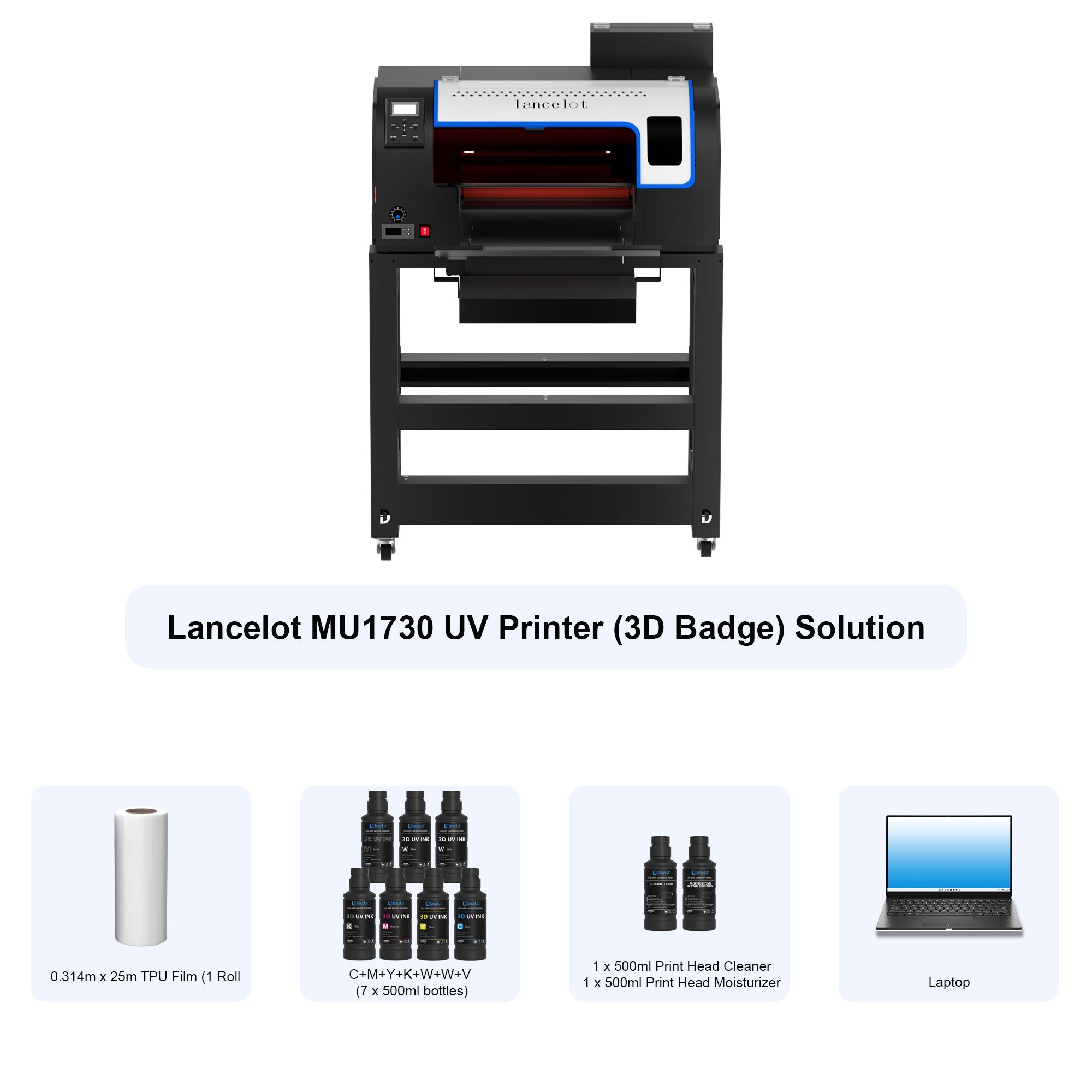

[Early Bird Offer] Lancelot MU1730-B UV 3D Badges Printer ( Limited Time )
No reviews
Regular price
$3,923.00
UV 3D Transfer Badges. Built to Stand Out. Engineered to Last.
Step beyond flat. The Lancelot MU1730-B redefines what's possible in premium customization with next-generation UV printing—engineered specifically for 3D transfer badges and high-end transfers.
Create vibrant, detailed transfers with a smooth finish. The MU1730 utilizes a scalable DX7 printhead configuration and supports high-resolution printing up to 0.6m²/h, producing professional-looking designs with consistent detail and completely eliminated micro-banding.
2. Smart White Ink Circulation — Less Settling, Less Clogging
Say goodbye to head clogs. The built-in automatic white ink stirring and circulation system keeps heavy titanium pigments moving smoothly, drastically reducing the risk of settling. Spend less time on maintenance and more time creating profit.
3. Steady Film Feeding & Easy Loading
An electric media hold-down suction system keeps the film perfectly flat and securely positioned during printing to prevent shifting and eliminate material waste. The convenient film-loading design with a specialized auxiliary sheet makes setup fast, easy, and single-operator friendly.
Hassle-Free Maintenance: Optimized structure reduces manual intervention and service frequency.
Holiday Mode: Automatic capping, flushing, and humidifying during extended non-working periods.
Smart Reminders: Real-time low-ink and full-ink alerts to avoid overfilling or downtime.
5. Built for Customization & Small-Business Production
Designed for premium 3D badge production, the MU1730 is ideal for creators, custom-product businesses, and print shops. The accessible manual cutting track lets you finish and slice off transfers safely on the spot.
⚙️ Technical Specifications
Model
Lancelot MU1730-B
Printhead
Industrial DX7 × 1
Print Speed
Up to 0.6m²/h (High-Resolution Mode)
Ink Type
Premium KCMYWV UV Ink System
Ink Configuration
Black + Cyan + Magenta + Yellow + White + Varnish
Media Handling
Adjustable suction platform / Electric media hold-down
White Ink System
Automatic Stirring & Circulation
Lamination System
Integrated Heated Rubber Roller
Heating System
Front-stage heating / Heated printhead baseplate
Film Capability
Up to 11.8 in width / Max thickness 0.3mm (Supports UV A Film & TPU Film)
Connection & Interface
High-speed USB 2.0
Printing Mode
Uni-direction / Bi-direction
Supported Formats
PNG, JPG, JPEG, TIFF, TIF, SVG, BMP
Software Languages
English / Portuguese / Spanish / Chinese (Optional)
Control Panel Languages
English / Chinese
Power Specs
110V, 50–60Hz / 300W / 5A–10A
Operating Environment
Temperature 68–86°F (20–30°C) / Humidity 45–65% (Non-condensing)
